Observability and AI Hackathon - Day 2

{
  "env": {
    "CLAUDE_CODE_ENABLE_TELEMETRY": "1",
    "CLAUDE_CODE_OTEL_FLUSH_TIMEOUT_MS": "1000",
    "OTEL_METRICS_EXPORTER": "otlp",
    "OTEL_LOGS_EXPORTER": "otlp",
    "OTEL_TRACES_EXPORTER": "otlp",
    "OTEL_EXPORTER_OTLP_PROTOCOL": "grpc",
    "OTEL_EXPORTER_OTLP_ENDPOINT": "http://localhost:4317",
    "OTEL_EXPORTER_OTLP_METRICS_TEMPORALITY_PREFERENCE": "cumulative",
    "OTEL_METRIC_EXPORT_INTERVAL": "1000",
    "OTEL_LOGS_EXPORT_INTERVAL": "5000",
    "BETA_TRACING_ENDPOINT": "http://localhost:4318",
    "CLAUDE_CODE_ENHANCED_TELEMETRY_BETA": "1",
    "ENABLE_BETA_TRACING_DETAILED": "1"
  },
  ...
}

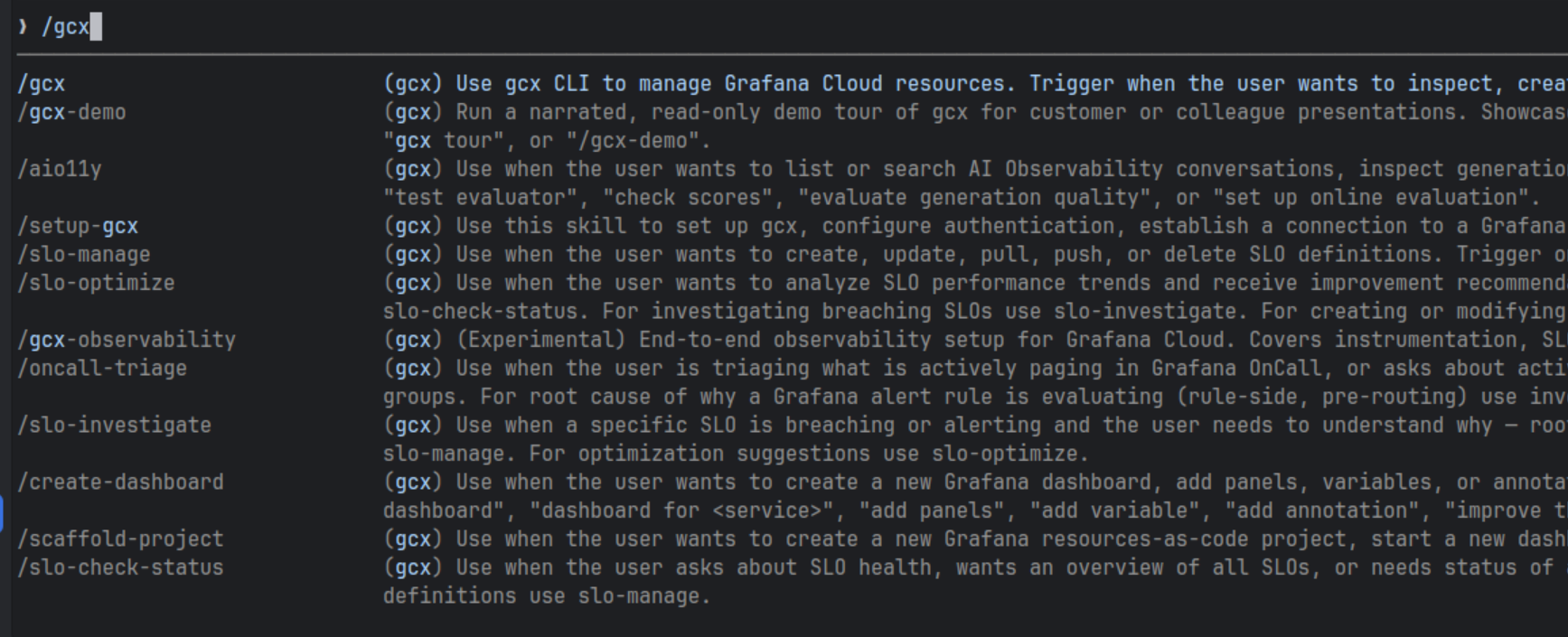

/plugin marketplace add grafana/gcx
 ⎿  Successfully added marketplace: gcx-marketplace

/plugin install gcx@gcx-marketplace
 ⎿  ✓ Installed gcx. Run /reload-plugins to apply.

# now I have to reload the plugins
/reload-plugins

gcx datasources list

# Based on the UIDs listed with the above command, I can define the default datasources
gcx config set contexts.default.default-prometheus-datasource prometheus
gcx config set contexts.default.default-loki-datasource loki
gcx config set contexts.default.default-tempo-datasource tempo

 /gcx:debug-with-grafana it seems that service alpha and beta have issues

● Datasources found: Prometheus, Loki, Tempo. Now let me confirm the services exist and are being scraped.

● Bash(echo "=== UP for alpha/beta ==="; gcx metrics query -d prometheus 'up{job=~"alpha|beta"}' -o json 2>/dev/null ...

● up is empty for these jobs (likely OTel push-based, not scraped), but alpha and beta exist as job labels. Let me discover what metrics are available for them.

● Bash(for svc in alpha beta; do
echo "=== $svc metric names ==="…)
 ⎿  === alpha metric names ===
       http_server_request_duration_seconds_bucket
       http_server_request_duration_seconds_count
  … +25 lines (ctrl+o to expand)

● These are Spring Boot/Tomcat Java services with OTel-style metrics. Let me check the labels (status code) and query error rates.

● I have a complete diagnosis. Here's the summary.

  Diagnosis: services alpha and beta

  Time window: last 1h (to 2026-06-29) · Datasources: Prometheus, Loki, Tempo

  Both services are behaving identically — same app (otel-demo-application.jar, package nl.cbos.simpleapp), same symptoms.

  Error signal

  - ~30% of all requests return HTTP 500 on both services (≈2.8 req/s of 9.3 req/s total).
  - Error rate is climbing over the window (1.44 → 2.82 req/s).
  - All 500s are isolated to a single endpoint: /random/{id}. The / route is healthy (0 errors).

  Latency signal

  - /random/{id} P95 ≈ 0.82s on both (the failing requests take ~420ms each).
  - / route is sub-5ms. Latency is elevated only on the failing endpoint — this is a fail-with-delay, not a slowdown that precedes errors.

  Log evidence (Loki, label service_name)

  Identical recurring exception on both services (~25x each in 30m):
  Servlet.service() for [dispatcherServlet] threw exception
  [Request processing failed: java.lang.RuntimeException: Something went terribly wrong]

  Trace evidence (Tempo)

  - Root span GET /random/{id}, http.response.status_code = 500, error.type = 500.
  - Exception event: RuntimeException: Something went terribly wrong thrown from nl.cbos.simpleapp.controller.SimpleRequestHandler.randomBehaviour.
  - No downstream calls in the trace — the error originates inside the service itself, not a shared dependency.
  - Traffic source is Grafana k6/2.0.0 (a load generator).

  Likely root cause

  This is intentional, application-level behavior, not an infrastructure failure. The randomBehaviour handler on /random/{id} deliberately throws a RuntimeException for a fraction of requests (a classic
  OTel demo app). Because alpha and beta run the same image driven by the same k6 load test, they show identical ~30% error rates. The "issue" is the demo app working as designed under load — not a
  dependency outage, resource exhaustion, or a service being down (note: there is no up metric for these jobs; they're OTel push-based, so they were never down).

  Recommended next actions

  1. If this is expected demo traffic — no action needed; the 500s are synthetic. You may want to exclude /random/{id} from error-budget/alerting so it doesn't generate noise.
  2. If you want to silence it — reduce the k6 error-injection rate or point load away from /random/{id}.
  3. If you genuinely expected these endpoints to succeed — fix SimpleRequestHandler.randomBehaviour in the nl.cbos.simpleapp code; that's the only place generating the exception.

  Want me to check for any firing alert rules tied to these services, or pull a dashboard snapshot for a visual?

The conclusion is correct, can you tell me the pattern for which these requests fail?

● Good question — the metric labels collapse the id into /random/{id}, so I need the raw url.path from traces. Let me pull the actual ids for failing vs succeeding requests.
...

● The search results don't include url.path — I need to fetch each trace. Let me extract ids from a batch of failing and OK traces.
...
● Clear, deterministic pattern — and the two sets don't overlap at all.

The failure pattern

Requests to /random/{id} fail based on the id value, deterministically:

┌──────────────────────┬────────────────────────────────┐
│          id          │             Result             │
├──────────────────────┼────────────────────────────────┤
│ 1, 2, 3              │ ❌  HTTP 500 (RuntimeException) │
├──────────────────────┼────────────────────────────────┤
│ 4, 5, 6, 7, 8, 9, 10 │ ✅  HTTP 200                    │
└──────────────────────┴────────────────────────────────┘

The failing set {1,2,3} and the succeeding set {4–10} never overlap across the ~50 traces sampled — the same id always produces the same outcome. So despite the endpoint being named /random/,
the failure isn't random at all: a request fails when id ≤ 3 (the handler throws Something went terribly wrong for the low ids).

This also explains the steady ~30% error rate: k6 drives ids 1–10 roughly uniformly, and 3 of those 10 values always error → ~30%. Both alpha and beta share the identical threshold since they
run the same nl.cbos.simpleapp image.

    private boolean handleRequest(int id) throws InterruptedException {
        Thread.sleep((long) (Math.abs((random.nextGaussian() + 1.0) * 300.0)));
        // mark fine when id is bigger then 3
        return id > 3;
    }

there is a different problem now, service beta is very slow can you find out why?

● Found it — beta has a /chain/{id} route with P95 ≈ 10s that doesn't exist on alpha. Let me trace it to see what it's waiting on.

● Let me find the genuinely slow ones (duration > 5s) and inspect the span structure.

● Bash(id=$(gcx traces query -d tempo '{ resource.service.name = "beta" && name = "GET /chain/{id}" && duration > 5s }' --from now-30m --to now --limit 5 -o json 2>/de…)
    ⎿  Error: Exit code 1
    trace: 2f07dd7f3c0187b5b5e8aa17739b7743
    Traceback (most recent call last):
    File "<string>", line 12, in <module>
    for r in rows: print(f'  {r[3]:8.1f}ms  {r[1]:6s} {r[2]:30s} {r[4]}')
    ^^^^^^^^^
    TypeError: unsupported format string passed to NoneType.__format__

● The downstream call to alpha only took 442ms, but the beta /chain/{id} span took 7.4s — so ~7s is being spent inside beta itself, not waiting on alpha. Let me check JVM GC, Tomcat thread pool,
and Pyroscope profiles for beta.

● GC is negligible (not the cause). The ~7s is self-time inside beta. Let me profile beta with Pyroscope to see whether it's burning CPU or blocked/sleeping.

● Pyroscope only profiles itself (the Java apps aren't instrumented there). Let me go back to the trace and look at the precise timing gap and any span events — where exactly the 7s sits relative
to the downstream call.

● The timeline is revealing: beta spends ~6.98s doing nothing observable before it even calls alpha (downstream call starts at +6977ms and only takes 442ms). That's a blocking delay/sleep inside
beta's /chain handler. Let me check whether this delay is constant or varies, across several traces.

● I now have the full picture. Here's the diagnosis.

Diagnosis: why beta is slow

Symptom: beta's overall P95 latency is dominated by a new endpoint, /chain/{id}, with P95 ≈ 10s. This route doesn't exist on alpha — alpha is unaffected.

Where the time goes

beta /chain/{id} makes exactly one downstream call: GET http://alpha:8080/random/{id} (with random ids 10–19, all > 3, so they succeed). Breaking down a slow 7.4s trace:

┌─────────────────────────────────────┬──────────────────┐
│                Phase                │       Time       │
├─────────────────────────────────────┼──────────────────┤
│ beta self-time before calling alpha │ ~6,977 ms        │
├─────────────────────────────────────┼──────────────────┤
│ downstream call to alpha            │ 442 ms (healthy) │
└─────────────────────────────────────┴──────────────────┘

So the latency is self-inflicted inside beta, not in alpha and not in the network. The downstream alpha call is consistently fast (~300–440 ms).

Ruled out

- alpha (downstream): healthy, ~440ms every time.
- GC: negligible (~0.0001 s/s).
- Thread pool: not exhausted (17 busy / 20 idle).
- The id value: does not correlate with the delay — random/15 shows up with both 1.7ms and 808ms pre-call gaps; random/16 with 0.8ms and 3,735ms.

The pattern

The pre-call delay inside beta is variable / random, ranging from ~0.5 ms to several seconds (I saw up to ~7s; the histogram tops out around the 10s bucket):

precall_gap:  0.5ms ... 700ms ... 1.5s ... 3.7s ... ~7s
total:        tracks the precall_gap almost exactly

The total request time tracks the pre-call gap almost 1:1 — confirming the handler injects an artificial, randomly-distributed delay (a Thread.sleep-style "think time") before forwarding to
alpha.

Root cause

The /chain/{id} handler in beta deliberately introduces a large, random in-process delay before its downstream call. The long right tail of that delay distribution (multi-second) is what drives
beta's P95 to ~10s. This is an application-level behavior in beta's code — not a dependency, resource, or infrastructure problem.

Recommended next actions

1. Inspect beta's /chain/{id} handler for an injected sleep / random latency (likely the demo equivalent of the randomBehaviour you saw earlier, but for latency instead of errors).
2. If this is intentional demo/chaos behavior, no fix needed — but exclude /chain/{id} from beta's latency SLO/alerting so it doesn't skew the service P95.
3. If unintended, remove/cap the delay; the actual request work (the alpha call) is only ~440ms.

can you give me more details on thread usage of beta?

● I'll dig into beta's Tomcat thread metrics over time — busy vs idle, and how close it's running to the pool limit.

● Let me look at the busy-thread trend in detail and render it as a graph, plus check how it tracks the slow /chain traffic.

● Let me check the configured pool ceiling and compare beta's thread behavior to alpha during the same window.

● Let me fix the peak query and add the overall JVM thread count comparison.

● Let me check JVM thread states — if the /chain delay is a Thread.sleep, threads should pile up in timed-waiting.

● The label is jvm_thread_state. Let me break it down properly and compare beta vs alpha.


● This is the key detail. Here's beta's thread usage, with the smoking gun.

Beta thread usage

Tomcat worker pool (http-nio-8080)

┌────────────────────────────┬──────┬──────────────────┐
│           Metric           │ beta │ alpha (baseline) │
├────────────────────────────┼──────┼──────────────────┤
│ Peak busy workers          │ 19   │ 6                │
├────────────────────────────┼──────┼──────────────────┤
│ Peak pool size (busy+idle) │ 39   │ 26               │
├────────────────────────────┼──────┼──────────────────┤
│ Peak total JVM threads     │ 49   │ 44               │
└────────────────────────────┴──────┴──────────────────┘

The pool is bursty, tracking the k6 load: busy workers spike to ~18–19 during a load burst, then fall to 0 between bursts. It scales up on demand (Tomcat grows the pool) and is nowhere near
exhaustion — far below the Tomcat default max of 200. So requests aren't queuing because the pool is full.

JVM thread states — this is the real story

Peak threads by state over the last 30m:

┌───────────────┬──────┬───────┐
│     State     │ beta │ alpha │
├───────────────┼──────┼───────┤
│ timed_waiting │ 35   │ 33    │
├───────────────┼──────┼───────┤
│ runnable      │ 9    │ 8     │
├───────────────┼──────┼───────┤
│ waiting       │ 13   │ 13    │
├───────────────┼──────┼───────┤
│ blocked       │ 18   │ 0     │
└───────────────┴──────┴───────┘

beta has up to 18 threads in BLOCKED state; alpha has none. Every other state is essentially identical between the two services.

What this means

BLOCKED means a thread is stuck waiting to acquire a monitor lock (a synchronized section), not sleeping. This reframes the earlier finding: the multi-second "pre-call gap" I saw in beta's
/chain/{id} traces isn't a simple Thread.sleep (that would land in timed_waiting, which is the same on both services) — it's lock contention.

The /chain/{id} handler serializes requests through a contended lock before it calls alpha. So:
- The more concurrent /chain requests arrive, the longer each one waits for the lock → exactly the variable, long-tailed delay (0.5ms → 7s) observed earlier.
- Each blocked request holds its Tomcat worker the whole time → that's why busy workers climb to ~18–19, matching the ~18 blocked threads.
- alpha never touches that lock → 0 blocked threads, fast and steady.

Bottom line

Beta's slowness is monitor-lock contention in the /chain/{id} handler, not GC, not pool exhaustion, and not a slow downstream (alpha responds in ~440ms). The fix is to remove or narrow the
synchronized/lock scope in that handler so /chain requests don't serialize. Want me to confirm by pulling block-contention from any thread-dump source, or check whether the lock wait scales
with /chain concurrency?

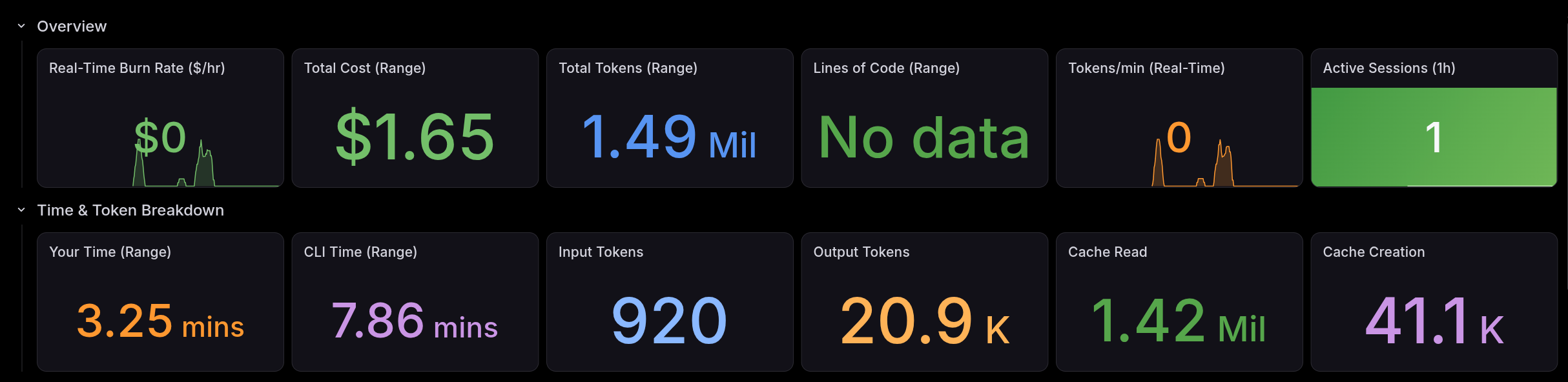

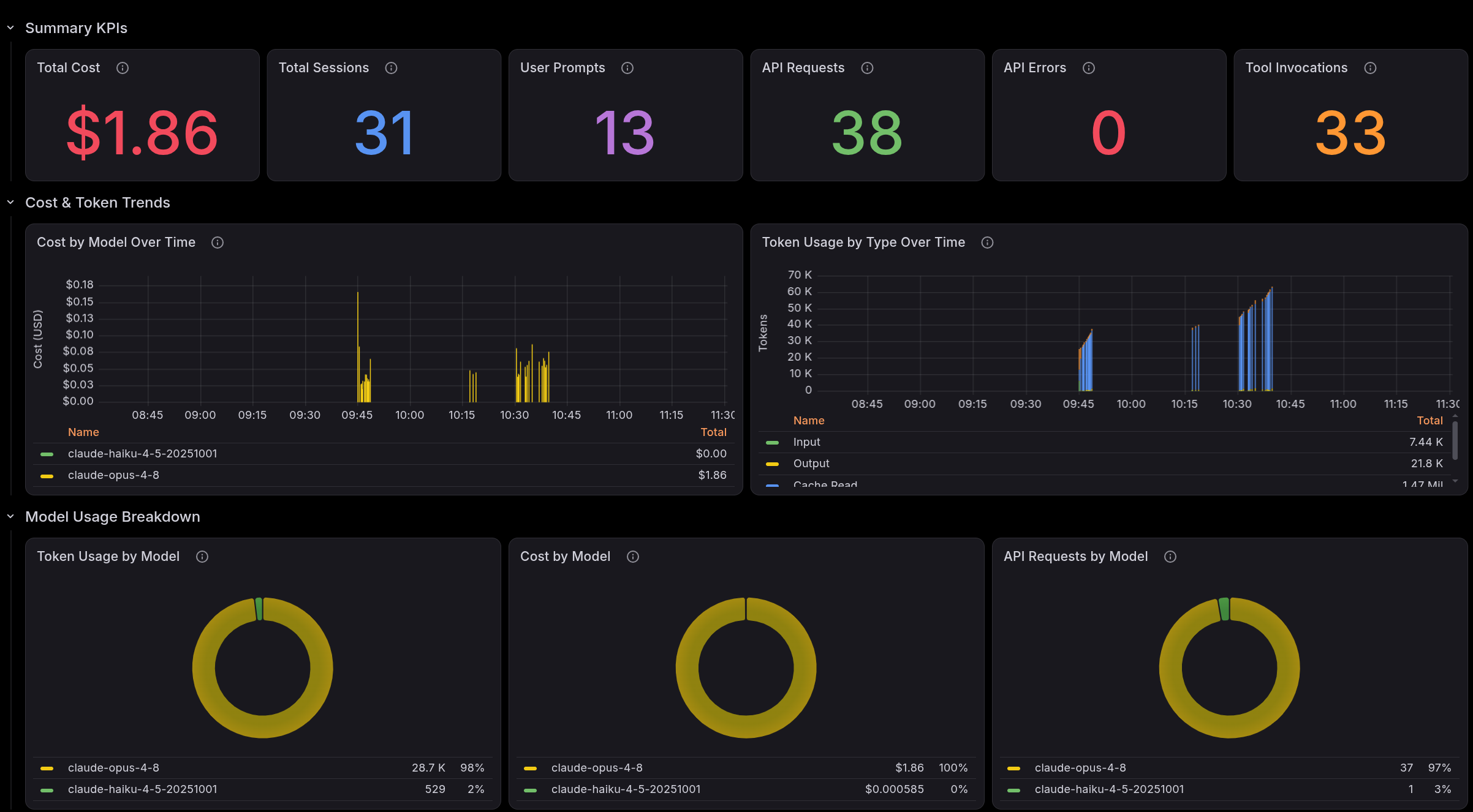

 Session

  Total cost:            $1.86
  Total duration (API):  6m 6s
  Total duration (wall): 2h 26m 25s
  Total code changes:    0 lines added, 0 lines removed
  Usage by model:
       claude-opus-4-8:  6.9k input, 21.7k output, 1.5m cache read, 55.3k cache write ($1.86)
      claude-haiku-4-5:  515 input, 14 output, 0 cache read, 0 cache write ($0.0006)

  Current session
  ████▌                                              9% used

  Current week (all models)
  █                                                  2% used

  What's contributing to your limits usage?
  Approximate, based on local sessions on this machine — does not include other devices or claude.ai

  Last 24h · these are independent characteristics of your usage, not a breakdown

  38% of your usage came from /gcx:debug-with-grafana
   Heavy skills can be scoped down or run with a cheaper model via skill
   frontmatter.

  38% of your usage came from plugin "gcx"
   Review what this plugin contributes — its agents, skills, and MCP tools all
   count toward your limit.

  Skills                  % of usage
  /gcx:debug-with-grafana        38%

  Plugins                 % of usage
  gcx                            38%
